Description

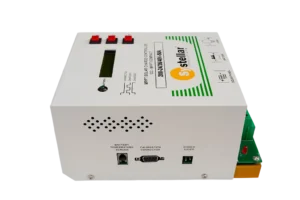

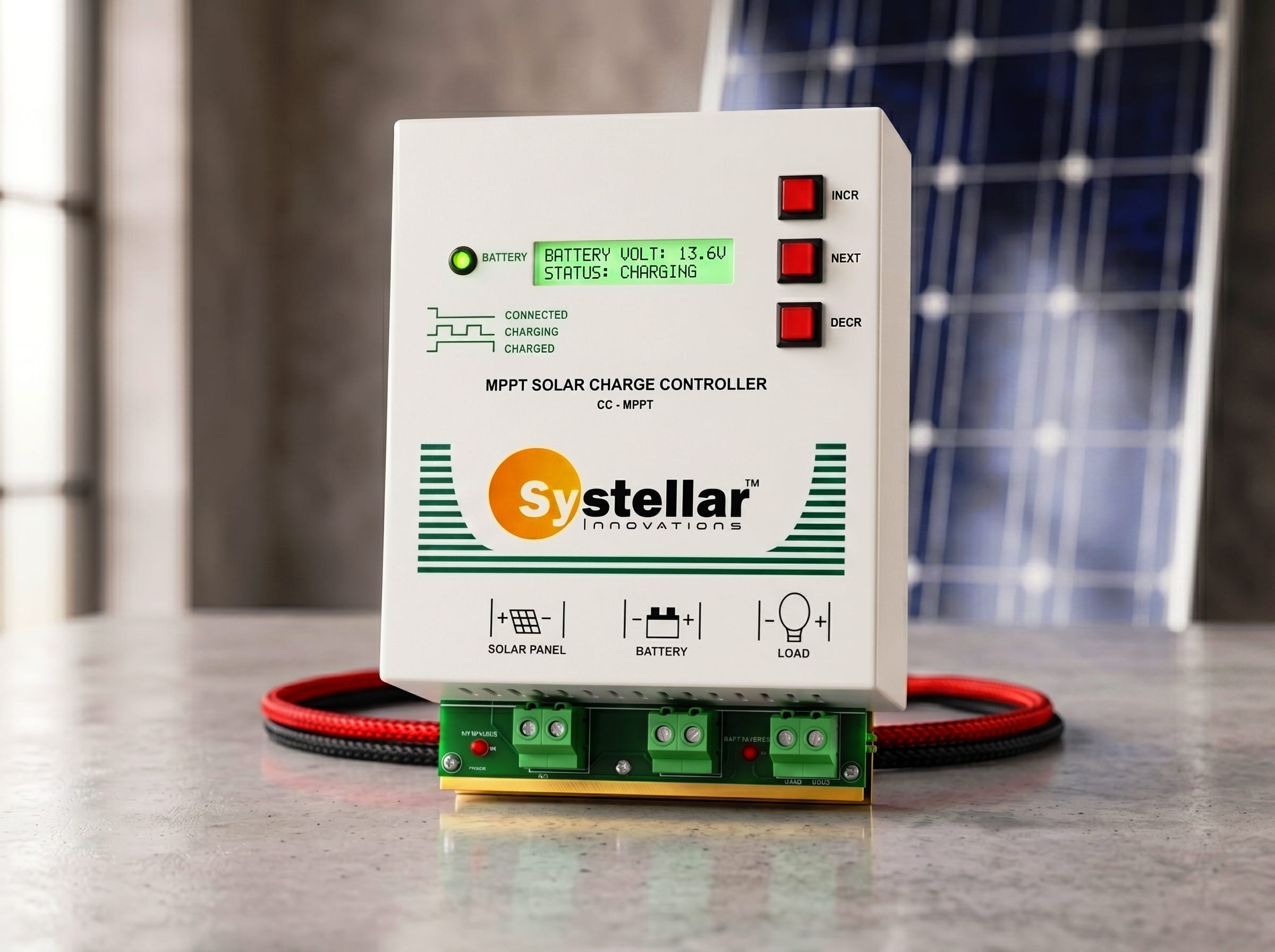

Discover the CC-MPPT-Compact series—one of India’s most advanced MPPT (Maximum Power Point Tracking) charge controller. Designed to deliver superior charging efficiency, this series supports 12V, 24V, 36V, and 48V battery banks, with models available in 25A and 50A capacities. Equipped with latest technology, it ensures optimal energy utilization for all your solar power needs.
How does an MPPT Solar charge controller work?
An MPPT (Maximum Power Point Tracking) solar charge controller is an advanced electronic device that optimizes the power output from your solar panels to your battery bank, ensuring maximum charging efficiency and better energy harvest. Compared to traditional PWM (Pulse Width Modulation) charge controllers, a high-quality MPPT controller can boost charging efficiency by up to 30%, especially in conditions with variable sunlight, shading, or when panels operate at temperatures far from standard test conditions. This makes MPPT technology the preferred choice for modern off-grid, hybrid, and grid-tied solar power systems where maximizing every watt counts.
The MPPT Working Principle
Solar panels naturally produce different voltages and currents throughout the day depending on sunlight intensity, panel temperature, and shading. Each solar module has a unique Maximum Power Point (MPP) — the sweet spot on its power curve where it delivers the highest possible wattage. An MPPT charge controller constantly tracks this point in real time, using sophisticated algorithms and high-speed electronics to adjust its input parameters.
Once the MPP is identified, the MPPT controller dynamically converts the higher voltage from the solar array into the optimal current needed by the battery bank. This process is similar to how an efficient DC-DC converter works. For example, a 100V solar array can safely and efficiently charge a 48V battery bank by stepping down the voltage while proportionally increasing the current, ensuring minimal energy loss during conversion.
In addition, MPPT controllers can handle higher input voltages, allowing installers to connect panels in longer series strings. This reduces cable losses and installation costs. Combined with intelligent temperature compensation and multi-stage charging, MPPT charge controllers deliver reliable, safe, and faster battery charging — even during challenging weather conditions.
By constantly finding the true maximum power point, an MPPT charge controller ensures that your solar power system performs at its peak all year round.
Product Models:

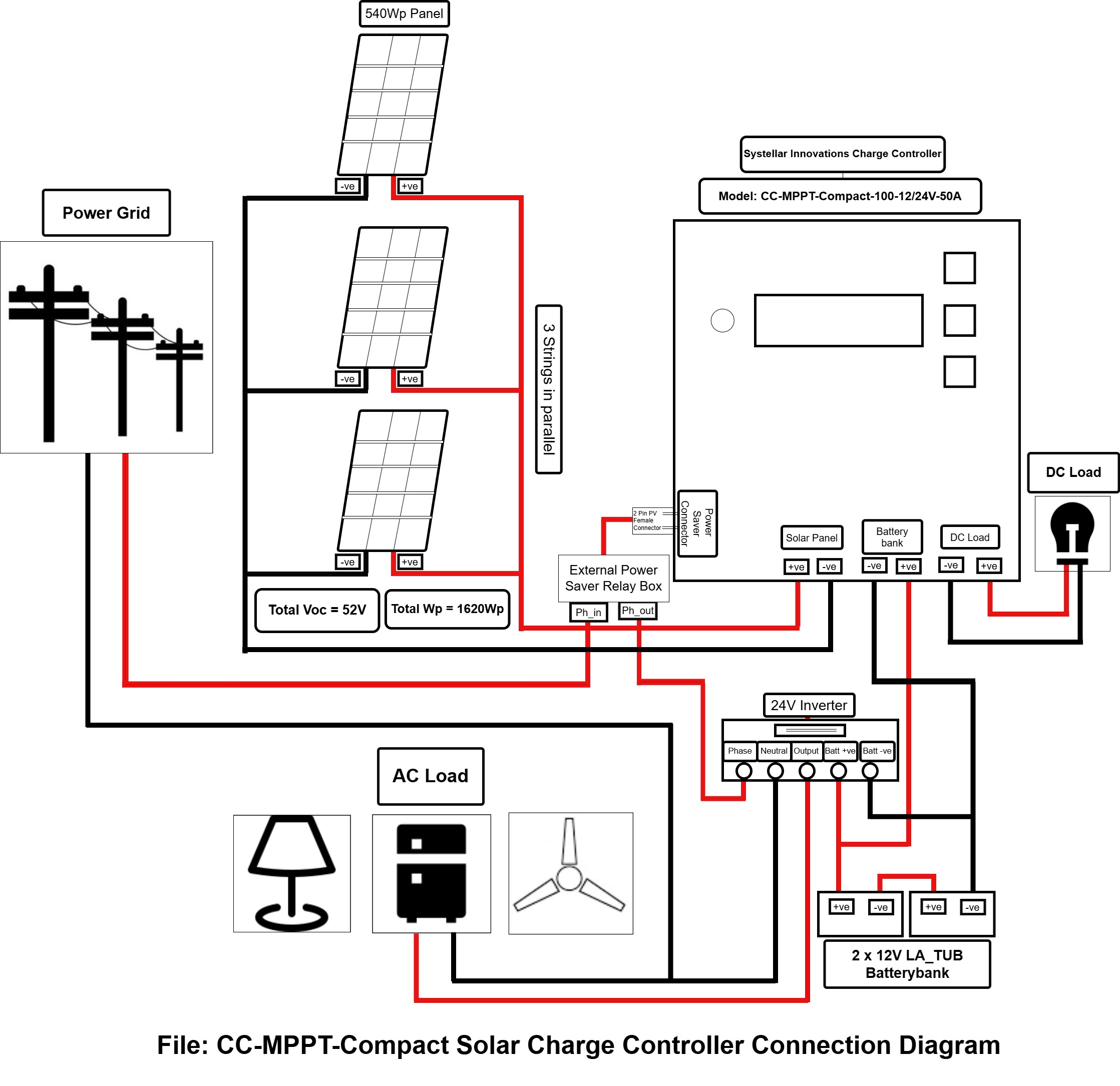

- CC-MPPT-Compact-100-25A (12V / 24V)

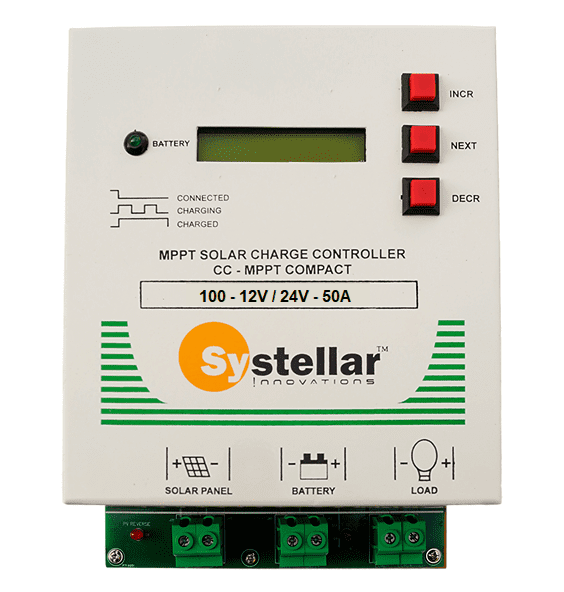

- CC-MPPT-Compact-100-50A (12V / 24V)

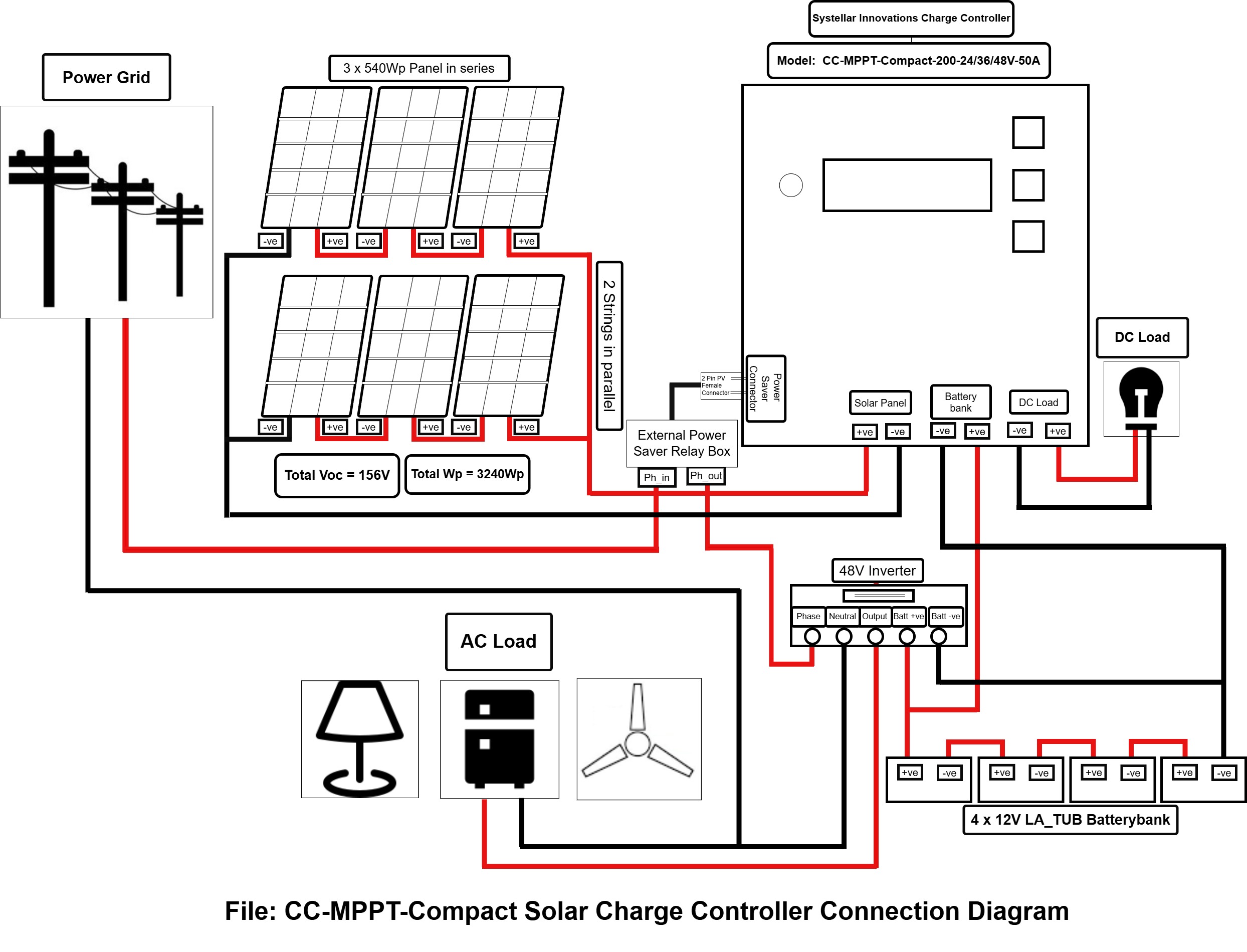

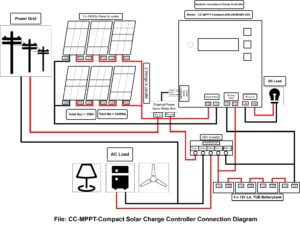

- CC-MPPT-Compact-200-25A (24V / 36V / 48V)

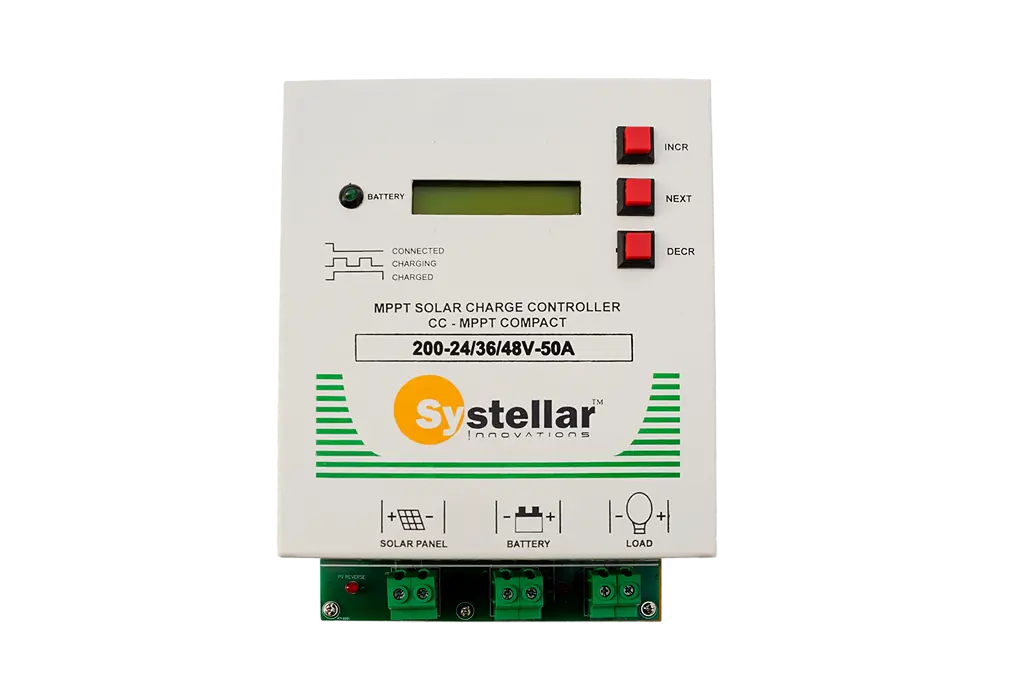

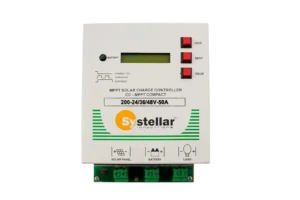

- CC-MPPT-Compact-200-50A (24V / 36V / 48V)
Why Choose the CC-MPPT-Compact?
- Latest Technology: Synchronous Buck converter technology for highest efficiency of 98.8%
- Up to 25% More Charging: Provides significantly higher energy generation compared to PWM models.
- All-Day Charging: Starts early in the day and continues until late evening, maximizing solar power usage.
- Advanced Microprocessor: Built with a powerful 32-bit STM32 microprocessor for precision and reliability.
- Ultra-Fast MPPT Efficiency: Achieves up to 98.8% MPPT tracking efficiency for enhanced performance.
- Versatile Applications: Ideal for residential, commercial, and industrial solar setups.
- Low power losses: Synchronous buck-converter topology provides unmatched product efficiency. Also, the product heats up much less than competitor products
Key Features
- Innovative Design: Synchronous buck-converter technology delivers conversion efficiency ranging from 97.3% (12V) to 98.8% (48V).
- 5-Stage Battery Charging: Includes Deep Discharge, Boost, Absorption, Trickle, and Equalize modes to enhance battery health and lifespan.
- Intelligent Configuration: Automatic battery detection and customization settings for voltage, charging current limits, and DC load timing.

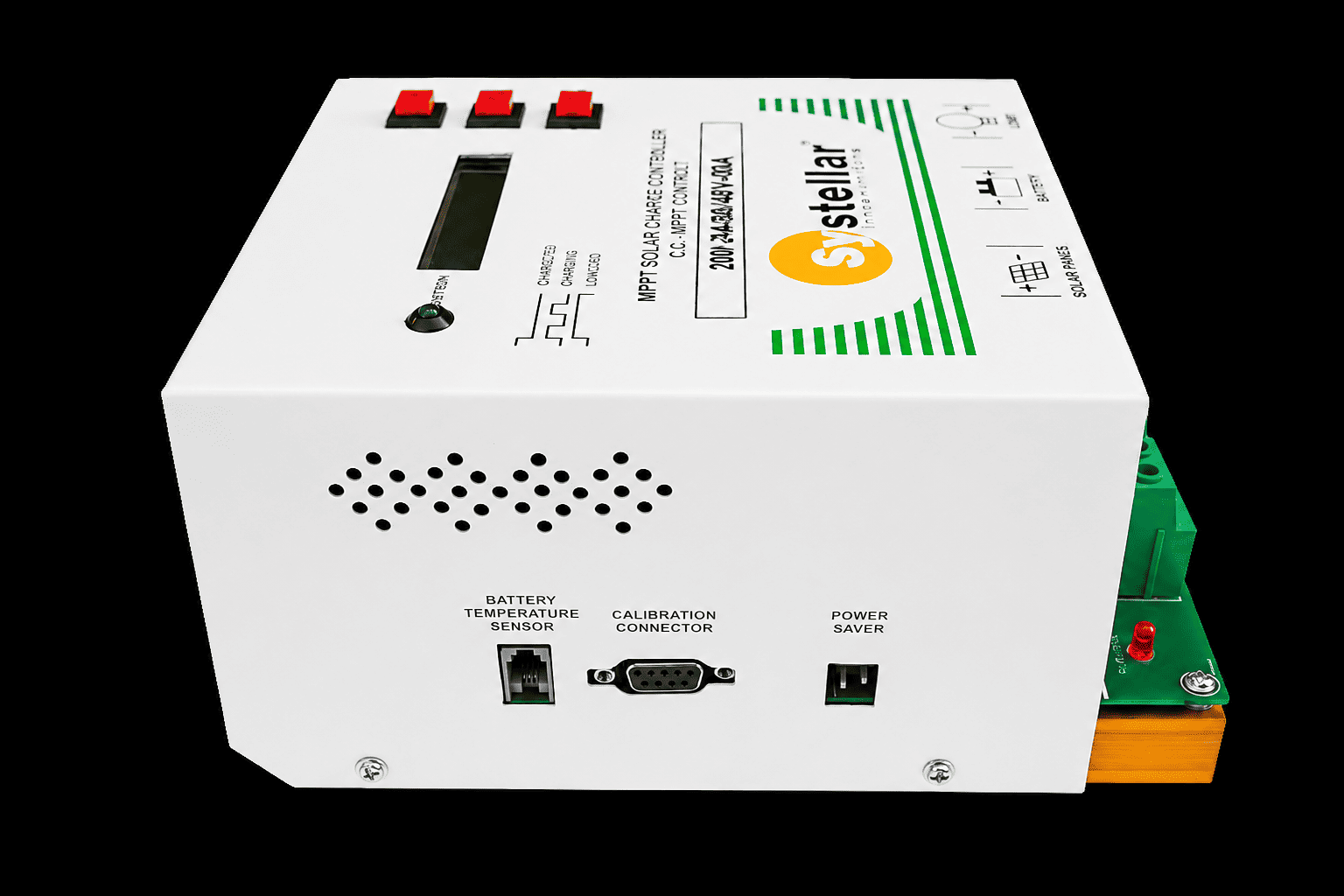

- Temperature Compensation: Optional battery temperature sensor ensures precise charging in varying conditions.
- Priority Charging from Solar: Features PowerSaver Box compatibility to prioritize battery charging using solar power.
- Enhanced Battery Compatibility: Supports Lead-acid, LiFePO4, Li-ion and Ni-Cd batteries and can also safely charge deep-discharged Lithium batteries
Applications
- Solar Power Systems: Ideal for residential and commercial setups needing efficient energy utilization.
- Inverter Battery Charging: Prioritize battery health with intelligent charging.
- Industrial Solar Solutions: Optimize energy usage for large-scale solar installations.
Why Systellar Innovations?
At Systellar, we blend advanced technology with practical solutions to offer:
- Reliable Performance: Products engineered for durability and long-term efficiency.
- Custom Options: Tailored configurations to suit diverse energy requirements.
- Competitive Pricing: High-quality solutions at an affordable cost.
Upgrade Your Solar System Today!
Experience the next level of solar power management with the CC-MPPT-Compact Solar Charge Controller. Contact us to learn more or place an order now.
