Solar Charge Controllers in India
MPPT & PWM
Battery Charging Voltage Range - 12V to 240V
Solar Panel Connection Capacity - 10Wp to 15000Wp
Battery Charging Current Range - 0.5A to 75A
MPPT Solar Charge Controller Range
Systellar Innovations offers a high-efficiency MPPT charge controller range designed to maximize energy output from solar panels. Our solar charge controllers in India use advanced tracking algorithms to improve charging efficiency by up to 30% compared to PWM models. These controllers are ideal for off-grid, hybrid, and commercial solar systems where performance and battery protection are critical.
Each MPPT charge controller from Systellar Innovations is engineered to deliver reliable performance across diverse environmental conditions in India. With features like automatic voltage detection, battery health optimization, and intelligent load control, our solar charge controllers in India ensure long-term system stability and energy savings for residential, industrial, and agricultural applications.
Model
Brief Description

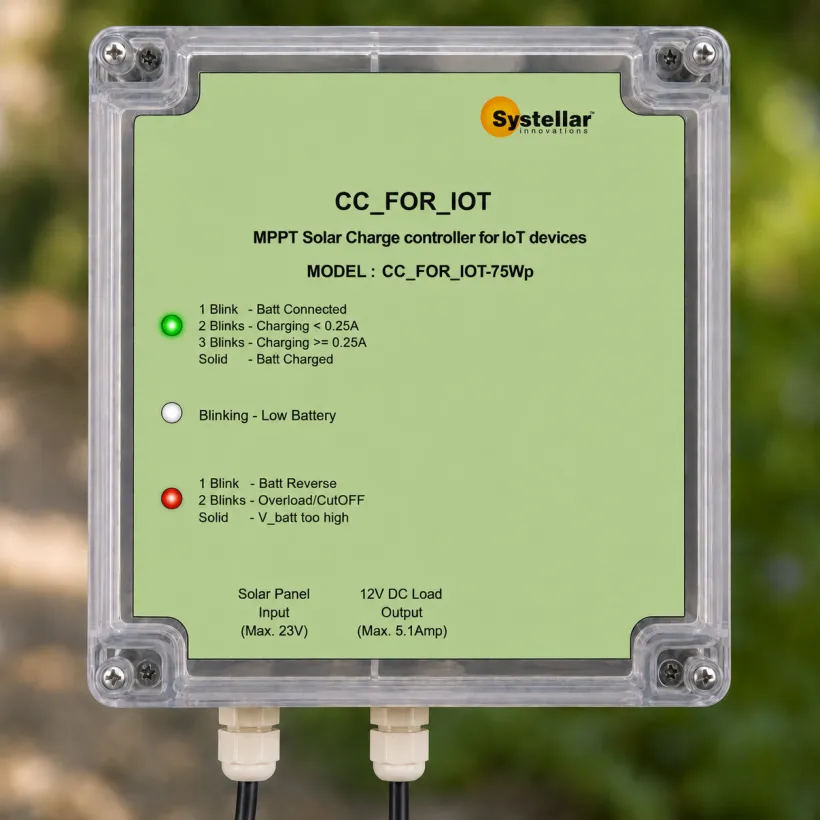

A small charge controller for IOT deployment in the field where mains power is not available. Field instruments can be made fully solar powered. Battery may be installed inside IP-67 enclosure for protection from rain and dust.
Battery Nominal Voltage (Volt)
12.8V
Maximum Charging Current (Amp)
Models available for 1.2A / 5A / 8A
Maximum Solar Panel Capacity (Wp)
LiFePO4
Battery Type
20Wp / 75Wp / 120Wp
Solar Panel Open Circuit Voltage (Volt)
20V - 22V
Expand Full View
DC Output
Yes
Power Saver Relay (Optional accessory) drive Output
No
Model

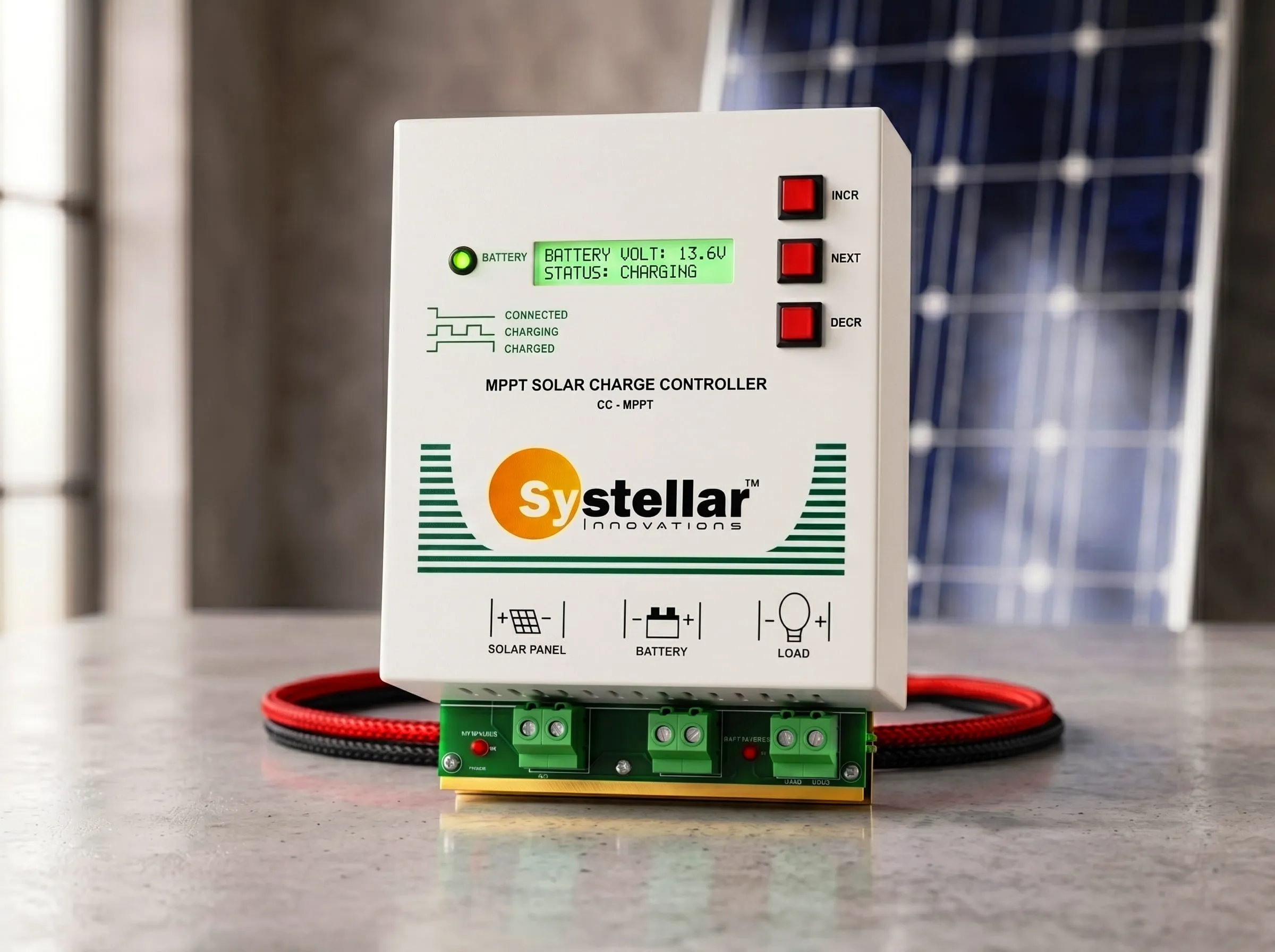

Cost effective MPPT Solar charge controller with 2 line LCD display. All protections provided for PV, Battery and DC load.
| Cost effective MPPT Solar charge controller with 2 line LCD display. All protections provided for PV, Battery and DC load. | Brief Description |
| 12V / 24V | Battery Nominal Voltage (Volt) |
| 25A | Maximum Charging Current (Amp) |
| Lead-acid / Li-ion / LiFePO4 / NiCd (Factory set) | Battery Type |
| 400Wp for 12V, 800Wp for 24V | Maximum Solar Panel Capacity (Wp) |
| Max. 85V | Solar Panel Open Circuit Voltage (Volt) |
| Yes | DC Output |
| Optional accessory | Power Saver Relay (Optional accessory) drive Output |
Cost effective MPPT Solar charge controller with 2 line LCD display. All protections provided for PV, Battery and DC load.
| Cost effective MPPT Solar charge controller with 2 line LCD display. All protections provided for PV, Battery and DC load. | Brief Description |
| 12V / 24V | Battery Nominal Voltage (Volt) |
| 50A | Maximum Charging Current (Amp) |
| Lead-acid / Li-ion / LiFePO4 / NiCd (Factory set) | Battery Type |
| 800Wp for 12V, 1600Wp for 24V | Maximum Solar Panel Capacity (Wp) |
| Max. 85V | Solar Panel Open Circuit Voltage (Volt) |
| Yes | DC Output |
| Optional accessory | Power Saver Relay (Optional accessory) drive Output |
Cost effective MPPT Solar charge controller with 2 line LCD display. All protections provided for PV, Battery and DC load.
| Cost effective MPPT Solar charge controller with 2 line LCD display. All protections provided for PV, Battery and DC load. | Brief Description |
| 24V / 36V / 48V | Battery Nominal Voltage (Volt) |
| 25A | Maximum Charging Current (Amp) |
| Lead-acid / Li-ion / LiFePO4 / NiCd (Factory set) | Battery Type |
| 800Wp for 24V, 1200Wp for 36V, 1600Wp for 48V | Maximum Solar Panel Capacity (Wp) |
| Max. 175V | Solar Panel Open Circuit Voltage (Volt) |
| Yes | DC Output |
| Optional accessory | Power Saver Relay (Optional accessory) drive Output |
Cost effective MPPT Solar charge controller with 2 line LCD display. All protections provided for PV, Battery and DC load.
| Cost effective MPPT Solar charge controller with 2 line LCD display. All protections provided for PV, Battery and DC load. | Brief Description |
| 24V / 36V / 48V | Battery Nominal Voltage (Volt) |
| 50A | Maximum Charging Current (Amp) |
| Lead-acid / Li-ion / LiFePO4 / NiCd (Factory set) | Battery Type |
| 1600Wp for 24V, 2400Wp for 36V, 3200Wp for 48V | Maximum Solar Panel Capacity (Wp) |
| Max. 175V | Solar Panel Open Circuit Voltage (Volt) |
| Yes | DC Output |
| Optional accessory | Power Saver Relay (Optional accessory) drive Output |
Model
MPPT Charge controller with a large (8 rows x 24 char) LCD display where all the charging parameters are displayed on the same screen. Higher battery charging current as compared to MPPT Compact models. All protections provided for PV, Battery and DC load. Also, provides SMU features to control external inverters.
| Brief Description | MPPT Charge controller with a large (8 rows x 24 char) LCD display where all the charging parameters are displayed on the same screen. Higher battery charging current as compared to MPPT Compact models. All protections provided for PV, Battery and DC load. Also, provides SMU features to control external inverters. |
| Battery Nominal Voltage (Volt) | 12V / 24V |
| Maximum Charging Current (Amp) | 50A |
| Battery Type | Lead-acid / Li-ion / LiFePO4 / NiCd (Field programmable) |
| Maximum Solar Panel Capacity (Wp) | 800Wp for 12V, 1600Wp for 24V |
| Solar Panel Open Circuit Voltage (Volt) | Max. 85V |
| DC Output | Yes |
| Power Saver Relay (Optional accessory) drive Output | Built-in |
MPPT Charge controller with a large (8 rows x 24 char) LCD display where all the charging parameters are displayed on the same screen. Higher battery charging current as compared to MPPT Compact models. All protections provided for PV, Battery and DC load. Also, provides SMU features to control external inverters.
| Brief Description | MPPT Charge controller with a large (8 rows x 24 char) LCD display where all the charging parameters are displayed on the same screen. Higher battery charging current as compared to MPPT Compact models. All protections provided for PV, Battery and DC load. Also, provides SMU features to control external inverters. |
| Battery Nominal Voltage (Volt) | 12V / 24V |
| Maximum Charging Current (Amp) | 75A |
| Battery Type | Lead-acid / Li-ion / LiFePO4 / NiCd (Field programmable) |
| Maximum Solar Panel Capacity (Wp) | 1200Wp for 12V, 2400Wp for 24V |
| Solar Panel Open Circuit Voltage (Volt) | Max. 85V |
| DC Output | Yes |
| Power Saver Relay (Optional accessory) drive Output | Built-in |
MPPT Charge controller with a large (8 rows x 24 char) LCD display where all the charging parameters are displayed on the same screen. Higher battery charging current as compared to MPPT Compact models. All protections provided for PV, Battery and DC load. Also, provides SMU features to control external inverters.
| Brief Description | MPPT Charge controller with a large (8 rows x 24 char) LCD display where all the charging parameters are displayed on the same screen. Higher battery charging current as compared to MPPT Compact models. All protections provided for PV, Battery and DC load. Also, provides SMU features to control external inverters. |
| Battery Nominal Voltage (Volt) | 24V /36V / 48V |
| Maximum Charging Current (Amp) | 50A |
| Battery Type | Lead-acid / Li-ion / LiFePO4 / NiCd (Field programmable) |
| Maximum Solar Panel Capacity (Wp) | 1600Wp for 24V, 2400Wp for 36V, 3200Wp for 48V |
| Solar Panel Open Circuit Voltage (Volt) | Max. 175V |
| DC Output | Yes |
| Power Saver Relay (Optional accessory) drive Output | Built-in |
MPPT Charge controller with a large (8 rows x 24 char) LCD display where all the charging parameters are displayed on the same screen. Higher battery charging current as compared to MPPT Compact models. All protections provided for PV, Battery and DC load. Also, provides SMU features to control external inverters.
| Brief Description | MPPT Charge controller with a large (8 rows x 24 char) LCD display where all the charging parameters are displayed on the same screen. Higher battery charging current as compared to MPPT Compact models. All protections provided for PV, Battery and DC load. Also, provides SMU features to control external inverters. |
| Battery Nominal Voltage (Volt) | 24V /36V / 48V |
| Maximum Charging Current (Amp) | 75A |
| Battery Type | Lead-acid / Li-ion / LiFePO4 / NiCd (Field programmable) |
| Maximum Solar Panel Capacity (Wp) | 2400Wp for 24V, 3600Wp for 36V, 4800Wp for 48V |
| Solar Panel Open Circuit Voltage (Volt) | Max. 175V |
| DC Output | Yes |
| Power Saver Relay (Optional accessory) drive Output | Built-in |
Brief Description

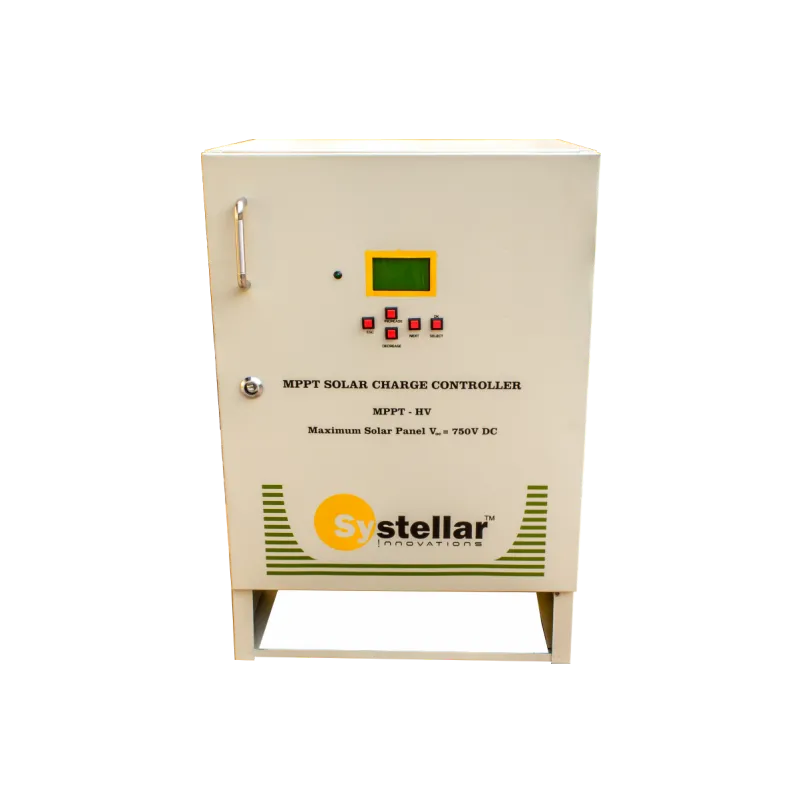

IGBT based MPPT charge controller with large (8 rows x 24 char) LCD display where all the charging parameters are displayed on the same screen. Rugged design for industrial applications and high battery bank voltages
Battery Nominal Voltage (Volt)
72V / 96V / 120V / 144V / 180V / 192V/ 240V
Maximum Charging Current (Amp)
50A
Maximum Solar Panel Capacity (Wp)
Lead-acid / Li-ion / LiFePO4 / NiCd (Factory set)
Battery Type
4800Wp for 72V 6400Wp for 96V 8000Wp for 120V 9600Wp for 144V 12,000Wp for 180V 12,800Wp for 192V 16,000Wp for 240V
Solar Panel Open Circuit Voltage (Volt)
Max 750V
Expand Full View
DC Output
No
Power Saver Relay (Optional accessory) drive Output
Optional accesory
PWM Solar Charge Controller Range
Systellar Innovations provides a reliable selection of PWM solar charge controllers that offer a cost-effective solution for basic solar power systems. These controllers regulate battery charging by maintaining a steady voltage level, making them suitable for small-scale solar setups such as street lighting, home backup systems, and rural applications.
Designed for simplicity and durability, each PWM solar charge controller in our lineup ensures consistent performance with features like overcharge protection, reverse polarity safety, and temperature compensation. Systellar Innovations’ PWM range is ideal for users looking for dependable and budget-friendly solar charge control in varied Indian conditions.
Model
Brief Description

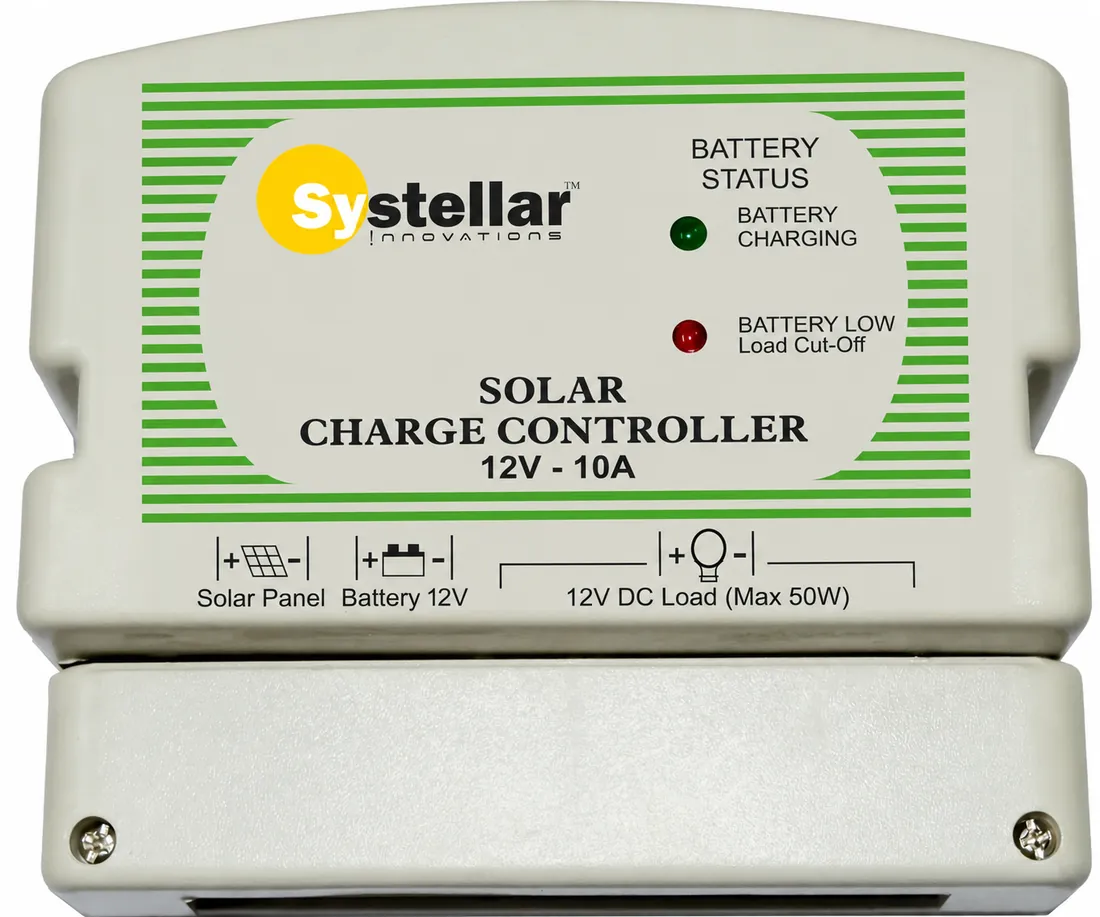

An ultra-low-cost yet dependable solution for managing solar power in home lighting systems and solar street lights. Designed for single 12V battery systems, it supports up to 10A charging current, making it ideal for various applications.
Battery Nominal Voltage (Volt)
12V
Maximum Charging Current (Amp)
10A
Maximum Solar Panel Capacity (Wp)
Lead-acid Flat cell / Tubular / SMF (Jumper selectable). Separate model for Li-ion, LiFePO4.
Battery Type
150Wp
Solar Panel Open Circuit Voltage (Volt)
20V - 25V
Expand Full View
DC Output
Yes
Power Saver Relay (Optional accessory) drive Output
No
Model

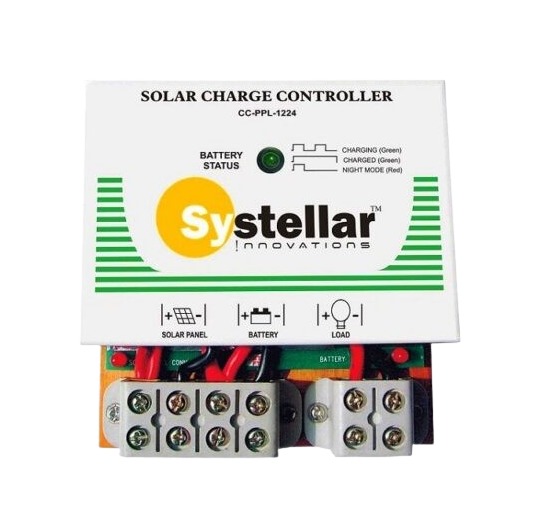

Systellar’s PPL Series PWM Solar Charge Controllers are the perfect choice for charging 12V, 24V, 36V, or 48V battery banks with a maximum charge current of 20A or 40A. Engineered for efficiency and simplicity, these controllers are ideal for powering DC devices, converting standard inverters into solar inverters, and running…
| Systellar’s PPL Series PWM Solar Charge Controllers are the perfect choice for charging 12V, 24V, 36V, or 48V battery banks with a maximum charge current of 20A or 40A. Engineered for efficiency and simplicity, these controllers are ideal for powering DC devices, converting standard inverters into solar inverters, and running… | Brief Description |
| 12V, 24V | Battery Nominal Voltage (Volt) |
| 20A | Maximum Charging Current (Amp) |
| Lead-acid Flat cell / Tubular / SMF (Jumper selectable). Separate model for Li-ion, LiFePO4. | Battery Type |
| 300Wp, 600Wp | Maximum Solar Panel Capacity (Wp) |
| 20V-25V, 37V-51V | Solar Panel Open Circuit Voltage (Volt) |
| Yes | DC Output |
| Yes | Power Saver Relay (Optional accessory) drive Output |
Systellar’s PPL Series PWM Solar Charge Controllers are the perfect choice for charging 12V, 24V, 36V, or 48V battery banks with a maximum charge current of 20A or 40A. Engineered for efficiency and simplicity, these controllers are ideal for powering DC devices, converting standard inverters into solar inverters, and running…
| Systellar’s PPL Series PWM Solar Charge Controllers are the perfect choice for charging 12V, 24V, 36V, or 48V battery banks with a maximum charge current of 20A or 40A. Engineered for efficiency and simplicity, these controllers are ideal for powering DC devices, converting standard inverters into solar inverters, and running… | Brief Description |
| 36V | Battery Nominal Voltage (Volt) |
| 20A | Maximum Charging Current (Amp) |
| Lead-acid Flat cell / Tubular / SMF (Jumper selectable). Separate model for Li-ion, LiFePO4. | Battery Type |
| 900Wp | Maximum Solar Panel Capacity (Wp) |
| 48V-70V | Solar Panel Open Circuit Voltage (Volt) |
| Yes | DC Output |
| Yes | Power Saver Relay (Optional accessory) drive Output |
Systellar’s PPL Series PWM Solar Charge Controllers are the perfect choice for charging 12V, 24V, 36V, or 48V battery banks with a maximum charge current of 20A or 40A. Engineered for efficiency and simplicity, these controllers are ideal for powering DC devices, converting standard inverters into solar inverters, and running…
| Systellar’s PPL Series PWM Solar Charge Controllers are the perfect choice for charging 12V, 24V, 36V, or 48V battery banks with a maximum charge current of 20A or 40A. Engineered for efficiency and simplicity, these controllers are ideal for powering DC devices, converting standard inverters into solar inverters, and running… | Brief Description |
| 36V | Battery Nominal Voltage (Volt) |
| 40A | Maximum Charging Current (Amp) |
| Lead-acid Flat cell / Tubular / SMF (Jumper selectable). Separate model for Li-ion, LiFePO4. | Battery Type |
| 1800Wp | Maximum Solar Panel Capacity (Wp) |
| 48V-70V | Solar Panel Open Circuit Voltage (Volt) |
| Yes | DC Output |
| Yes | Power Saver Relay (Optional accessory) drive Output |
Systellar’s PPL Series PWM Solar Charge Controllers are the perfect choice for charging 12V, 24V, 36V, or 48V battery banks with a maximum charge current of 20A or 40A. Engineered for efficiency and simplicity, these controllers are ideal for powering DC devices, converting standard inverters into solar inverters, and running…
| Systellar’s PPL Series PWM Solar Charge Controllers are the perfect choice for charging 12V, 24V, 36V, or 48V battery banks with a maximum charge current of 20A or 40A. Engineered for efficiency and simplicity, these controllers are ideal for powering DC devices, converting standard inverters into solar inverters, and running… | Brief Description |
| 48V | Battery Nominal Voltage (Volt) |
| 20A | Maximum Charging Current (Amp) |
| Lead-acid Flat cell / Tubular / SMF (Jumper selectable). Separate model for Li-ion, LiFePO4. | Battery Type |
| 1200Wp | Maximum Solar Panel Capacity (Wp) |
| 57V-95V | Solar Panel Open Circuit Voltage (Volt) |
| Yes | DC Output |
| Yes | Power Saver Relay (Optional accessory) drive Output |
Model

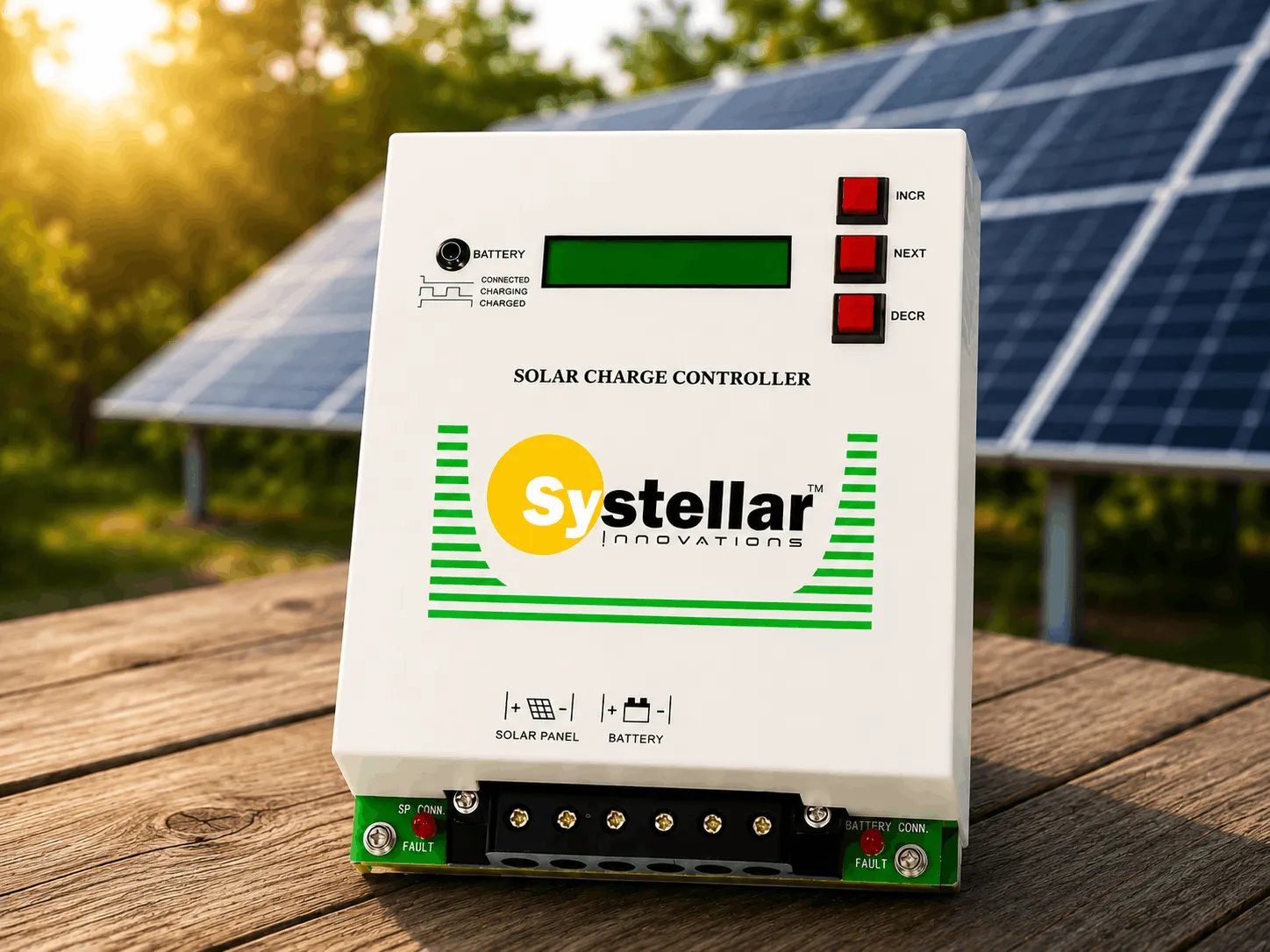

The CC-PWM-HV series is the perfect solution for charging batteries in existing inverters installed at petrol pumps, institutes, offices, and schools. Designed to utilize solar power effectively, this range of controllers has helped hundreds of customers across India reduce electricity bills and embrace renewable energy over the past decade. Ideal…
| Brief Description | The CC-PWM-HV series is the perfect solution for charging batteries in existing inverters installed at petrol pumps, institutes, offices, and schools. Designed to utilize solar power effectively, this range of controllers has helped hundreds of customers across India reduce electricity bills and embrace renewable energy over the past decade. Ideal… |
| Battery Nominal Voltage (Volt) | 72V/96V/120V/144V/180V/192V/240V |
| Maximum Charging Current (Amp) | 20A |
| Battery Type | Lead-acid / Li-ion / LiFePO4 (Factory Set) |
| Maximum Solar Panel Capacity (Wp) | 1800Wp/2400Wp/3000Wp/3600Wp/4500Wp/4800Wp/6000Wp |
| Solar Panel Open Circuit Voltage (Volt) | 79V-100V/120V-150V/140V-200V/160V-250V/220V-300V/240V-350V/280V-400V |
| DC Output | No |
| Power Saver Relay (Optional accessory) drive Output | Yes |
The CC-PWM-HV series is the perfect solution for charging batteries in existing inverters installed at petrol pumps, institutes, offices, and schools. Designed to utilize solar power effectively, this range of controllers has helped hundreds of customers across India reduce electricity bills and embrace renewable energy over the past decade. Ideal…
| Brief Description | The CC-PWM-HV series is the perfect solution for charging batteries in existing inverters installed at petrol pumps, institutes, offices, and schools. Designed to utilize solar power effectively, this range of controllers has helped hundreds of customers across India reduce electricity bills and embrace renewable energy over the past decade. Ideal… |
| Battery Nominal Voltage (Volt) | 48V/72V/96V/120V/144V/180V/192V/240V |
| Maximum Charging Current (Amp) | 40A |
| Battery Type | Lead-acid / Li-ion / LiFePO4 (Factory Set) |
| Maximum Solar Panel Capacity (Wp) | 2400Wp/3600Wp/4800Wp/6000Wp/7200Wp/9000Wp/9600Wp/12000Wp |
| Solar Panel Open Circuit Voltage (Volt) | 57V-95V/79V-100V/120V-150V/140V-200V/160V-250V/220V-300V/240V-350V/280V-400V |
| DC Output | No |
| Power Saver Relay (Optional accessory) drive Output | Yes |
