Overview
The CC-PWM-HV series is the perfect solution for charging batteries in existing inverters installed at petrol pumps, institutes, offices, and schools. High voltage solar charge controllers are designed to utilize solar power effectively. This range of controllers has helped hundreds of customers across India reduce electricity bills and embrace renewable energy since 2012. Ideal for remote areas, it ensures reliability and efficiency in solar energy management.
Product Models:
The 40A models below are the ones sold online, priced ₹8,799 – ₹11,199 depending on battery-bank voltage (incl. GST, free shipping across India). All are supplied for Lead Acid, Tubular and SMF batteries, which is how this controller is almost always installed.
- CC-PWM-HV-72V – 40A – ₹8,799 – Buy Online
- CC-PWM-HV-96V – 40A – ₹8,999 – Buy Online
- CC-PWM-HV-120V – 40A – ₹9,499 – Buy Online
- CC-PWM-HV-144V – 40A – ₹9,799 – Buy Online
- CC-PWM-HV-180V – 40A – ₹10,499 – Buy Online
- CC-PWM-HV-240V – 40A – ₹11,199 – Buy Online
- Power Saver Accessory
Also available on enquiry, not sold online: a 20A version of each voltage, and Li-ion / LiFePO4 versions of the whole range (factory-set for the chosen chemistry). Demand for these is low, so they are built to order — send an enquiry or call +91-9568004455.
Key Features
- Wide Voltage Compatibility: Models available for 72V, 96V, 120V, 144V, 180V, and 240V battery banks with 20A and 40A charging current options.

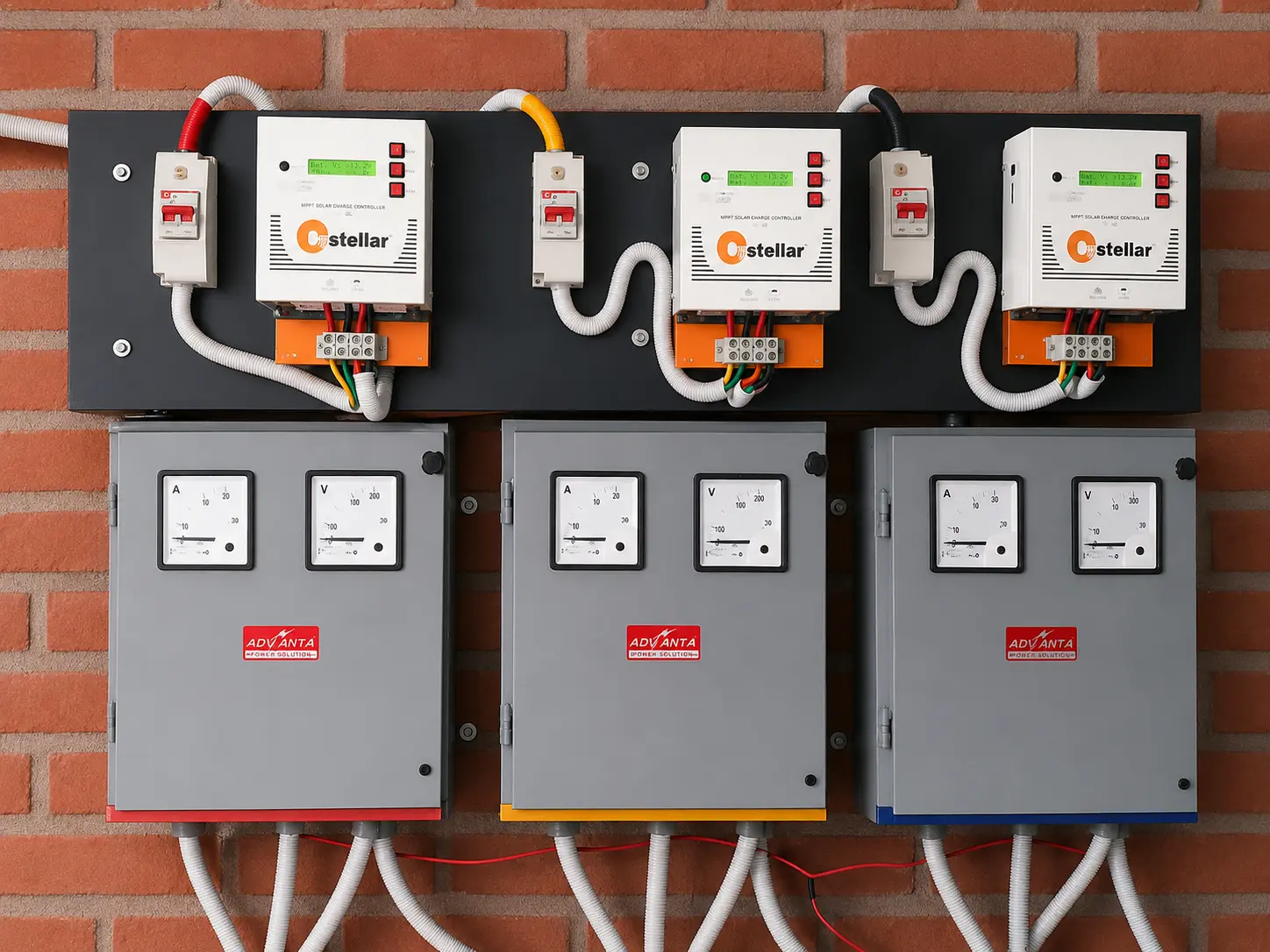

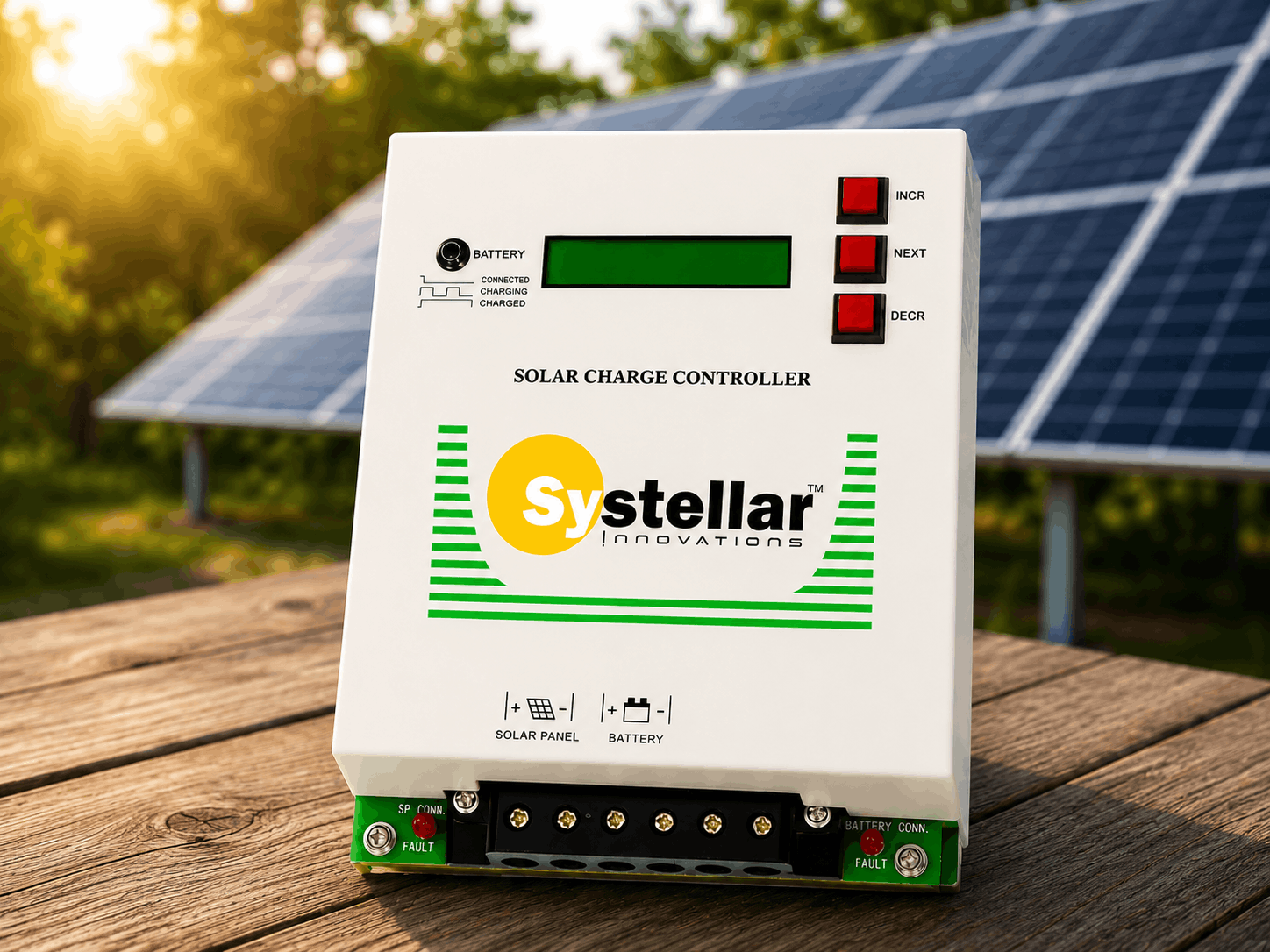

- Informative LCD Display: A 16×2 LCD provides real-time data on PV and battery current, solar power generated, and battery charging modes.
- Solar Inverter Conversion: Convert standard inverters to solar inverters with the Power Saver Box.
- Advanced Charging Modes: Features 4-stage battery charging—Boost, Absorption, Trickle, and Equalizing—to extend battery life.
- Customizable Settings: Users can set maximum charging current and adjust charging voltages for different battery types (Lead Acid, Tubular, SMF).
- Comprehensive Protections: Includes safeguards against reverse polarity, battery overcharge, temperature fluctuations, load short-circuits, and PV/battery short-circuits.
- 1-Year Warranty: Peace of mind with a comprehensive warranty.
Why Choose Systellar CC-PWM-HV Controllers?
- Trusted by customers across India since 2012.
- Ideal for reducing electricity bills and harnessing solar energy in remote and urban areas.
- Easy to install and maintain with user-friendly interfaces and robust safety features.
Contact Us
Upgrade your solar energy systems with Systellar CC-PWM-HV range of PWM Solar Charge Controllers. Contact us today for more details or to place an order.
Call: +91-9568004455
Email: info@systellar.in
Technical Specifications
| Parameters | MODEL: CC-PWM-HV |
| Charge controller type | Microprocessor controlled high efficiency PWM design |
| Display Type | 16 x 2 LCD digital display with backlight |
| Battery Voltage | 72V / 96V / 120V / 144V / 180V / 240V (Factory set) |
| Maximum solar panel voltage | 410 V |
| Charging method | 3 stage battery charging – Boost/Absorption/Trickle mode |
| Max Charging Current (at 25! C ) | 20 A and 40A |
| Equalizing charging mode | Yes |
| Temp. compensated battery charging | Yes (Built-in ambient temperature sensor & external battery temp. sensor optional) |
| Conversion Efficiency (%) | Up to 98% |
| Parameters displayed on LCD | PV power, Cumulative PV KWHr, Battery voltage, Battery current, Battery charging mode, Night mode, Time since dusk, Ambient/Battery temperature |
| Programmable parameters(Using 3 buttons on front panel) (Voltages shown for 12V lead acid battery. Multiply by 5, 6, 8, 10, 15, 16 or 20 to get actual battery bank voltage) |
Battery end-of-charge voltage (Range: 13.6V – 14.5V) |
| Battery trickle charge voltage (Range: 13.2V – 14V) | |
| Battery equalizing charge voltage (Range: 14V – 14.8V) | |
| Maximum battery charging current (Range: 5A – 20A or 5 – 40A) | |
| Optional Accessories | Battery temperature sensor with 2 meters cable |
| Power saver box for 4 KW inverter load or 15 KW inverter load (Mains supply to inverter is cut-off when the battery voltage is above a set voltage. This ensures saving in electricity bills) | |
| Operating Temperature Range | 0 to 60 °C |
| Usage | For indoor use only |
| Unit Weight | 1.4 kg |
| Dimensions (H x W x D) | 190mm x 160mm x 80mm |
| Mounting | Vertical wall mount – indoor only |
| Manufacturing Warranty | One year |
| Certification | ISO 9001:2015 (company-wide) · Made in India |
Frequently Asked Questions (FAQ)
Which battery banks does the CC-PWM-HV series support?
Models are available for 72V, 96V, 120V, 144V, 180V and 240V battery banks. The 40A versions are the ones stocked and sold online (₹8,799 – ₹11,199 by voltage); a 20A version of each voltage is built to order on enquiry.
Can I convert my existing inverter into a solar inverter?
Yes. Using the optional Power Saver Box, a standard inverter at a petrol pump, school, office or institute can be converted into a solar inverter so the battery is charged from solar first, reducing your electricity bill.
PWM or MPPT for a high-voltage bank?
The CC-PWM-HV range is a proven, cost-effective choice when you already have a high-voltage inverter battery bank and want to add solar charging. It has helped hundreds of customers across India reduce electricity bills since 2012.
Which battery types and charging stages are supported?
The version sold online charges Lead Acid, Tubular and SMF batteries using a 4-stage profile — Boost, Absorption, Trickle and Equalizing — with user-adjustable charging current and voltages. Li-ion and LiFePO4 versions are also manufactured, factory-set for the chosen chemistry, and are available on enquiry rather than through the online store.
What protections does it include?
Comprehensive protection against reverse polarity, battery overcharge, temperature fluctuation, load short-circuit and PV/battery short-circuit. A 16×2 LCD shows PV and battery current, solar power generated and the charging mode.
What warranty is provided?
The CC-PWM-HV controllers come with a 1-year warranty.
Note: product specifications are subject to change for continuous product enhancement. Please contact Systellar for the latest specifications.
