All In One Solar Street Light — Compact, Wireless & Ready to Install
MNRE Approved | Zero Wiring | PIR Motion Sensor | 7W to 50W | Made in India

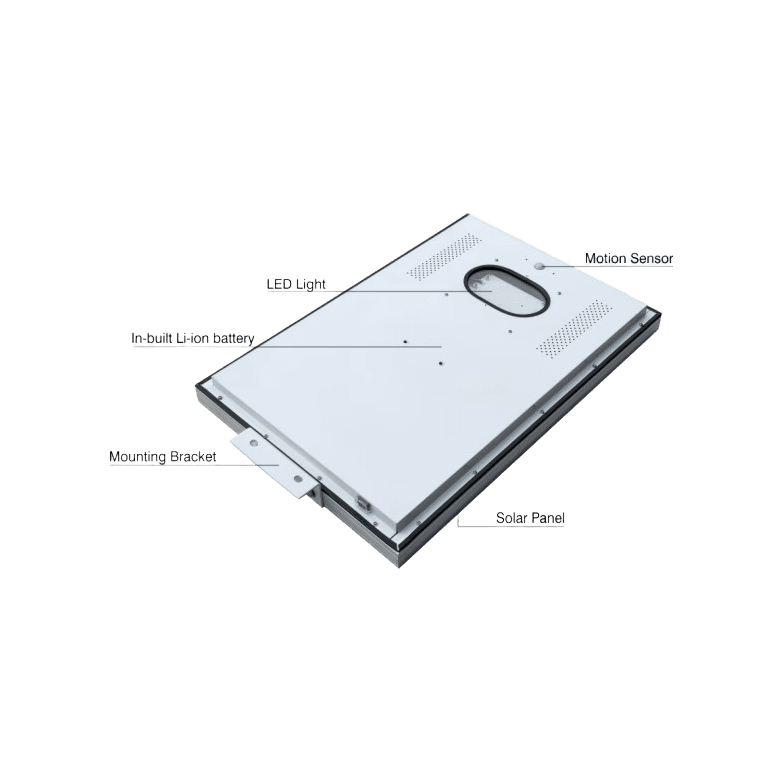

Systellar Innovations’ All In One Solar Street Light packs the solar panel, LED luminaire, lithium battery, and charge controller into a single sleek unit — no external wiring, no battery boxes, no trenching. Just mount it on a pole and it works. Available in 7W, 12W, 15W, 20W, 25W, 30W, 40W, and 50W models, these lights are the most convenient, theft-proof, and modern-looking solar street lighting solution for colonies, villages, campuses, and parking lots across India.
Get a Custom Quote 📞 Call +91-9568004455
What Is an All In One Solar Street Light?

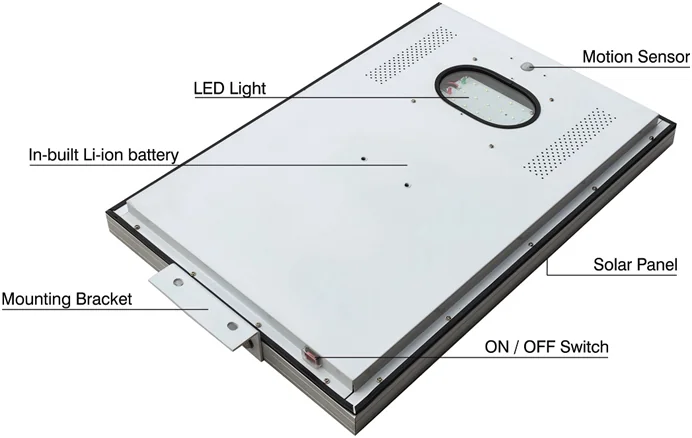

An all in one solar street light — also called an integrated solar street light or a monoblock solar light — is a completely self-contained outdoor lighting unit. The solar panel, LED lamp, lithium battery, MPPT/PWM charge controller, and PIR motion sensor are all housed within a single compact body. There are no separate components, no external wiring, and no battery box to install.
During the day, the built-in solar panel charges the internal battery. At dusk, the dusk-to-dawn sensor automatically switches the LED on. The PIR motion sensor keeps the light dimmed to save energy when no one is around, and brightens to full power when movement is detected. The entire cycle repeats every day, autonomously, with zero electricity cost.
This makes all in one solar street lights the ideal solution wherever:
- Trenching or underground cabling is not practical or economical
- The installation site is in a rural or semi-urban area without grid access
- Anti-theft protection is a priority — no external battery box means nothing to steal
- A modern, minimalist aesthetic is required for the lighting infrastructure
- Quick installation with minimum civil or electrical work is needed
How Does an All In One Solar Street Light Work?
The working principle is simple and fully automatic:
- ☀️ Daytime: The built-in monocrystalline solar panel absorbs sunlight and charges the internal LiFePO4 / Li-ion battery through an MPPT/PWM charge controller — achieving up to 98% charging efficiency.
- 🌙 Dusk: The ambient light sensor detects falling light levels and automatically activates the LED at the set brightness level.
- 🚶 Night — Motion Detected: The PIR sensor triggers full 100% brightness when a person or vehicle is detected within range.
- 💤 Night — No Motion: After 30 seconds of inactivity, the light dims to 30–50% — conserving battery and extending backup duration.
- 🌅 Dawn: The ambient sensor detects sunrise and switches the LED off automatically.
Why Choose Systellar’s All In One Solar Street Light?
📦 Single-Unit, Zero-Wiring Installation
The entire system is pre-assembled at the factory. Installation requires only mounting the bracket onto an existing or new pole — no wiring, no welding, no drilling, no civil work. A single technician can install multiple units in a day, dramatically reducing project labour costs.
🔒 Built-In Anti-Theft Design
Because the battery is sealed inside the luminaire body, there is no external battery box for thieves to target. This is a critical advantage in rural installations, roadside projects, and unmonitored locations where traditional solar lights with separate battery boxes are frequently vandalised.
🏙️ Modern, Compact Aesthetic
The slim, monoblock design looks contemporary and clean — a significant visual upgrade over traditional solar street lights with visible wiring and bulky battery boxes hanging off poles. Suitable for smart city projects, residential colonies, commercial campuses, and heritage areas where aesthetics matter.
🔋 LiFePO4 Battery Option — 5-Year Warranty
Choose from Li-ion or Lithium Ferro Phosphate (LiFePO4) battery options. LiFePO4 batteries offer 2,000+ deep charge cycles, superior thermal stability, and a 5-year warranty — ensuring long-term performance even in India’s harsh summer and monsoon conditions.
📡 PIR Motion Sensor — Smart Energy Management
Every Systellar all in one solar street light includes a PIR passive infrared motion sensor. When no movement is detected for 30 seconds, the light dims automatically — extending battery backup significantly. This is particularly important during consecutive cloudy or rainy days when solar charging is limited.
🏛️ MNRE / NISE / NABL Government Certified
All solar panels used in Systellar products are MNRE approved and tested at NISE / NABL-accredited government laboratories, IEC certified, and carry a 25-year performance warranty. This makes our all in one solar street lights eligible for government tenders, GeM procurement, panchayat schemes, and smart city projects.
🌧️ IP65 Weatherproof — Built for India
The aluminium alloy body carries an IP65 rating — fully protected against dust ingress and water jets. Tested across temperature ranges from 0°C to 60°C and humidity up to 95% non-condensing, these lights are built to survive Indian summers, monsoons, and winters without degradation.
💡 High-Efficiency LEDs — CRI > 80
Systellar uses premium LED chips delivering 130+ lumens per watt with a Colour Rendering Index (CRI) greater than 80 — ensuring that objects and people appear in their true colours under the light, which is critical for road safety. Rated life exceeds 50,000 hours.
🇮🇳 100% Made in India — ISO 9001:2015 Certified

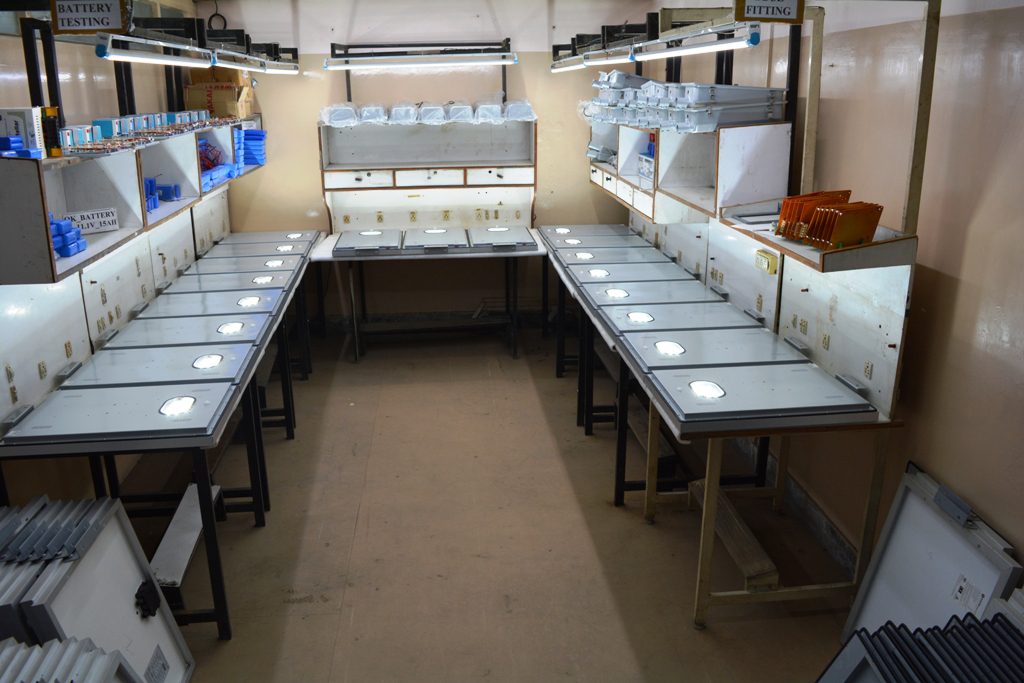

Designed and manufactured in Meerut, Uttar Pradesh by Systellar Innovations — an ISO 9001:2015 certified company founded by IIT alumni. Every unit undergoes quality checks before dispatch. Custom wattage, battery, and bracket configurations are available for bulk and OEM orders.
Where Are All In One Solar Street Lights Best Used?

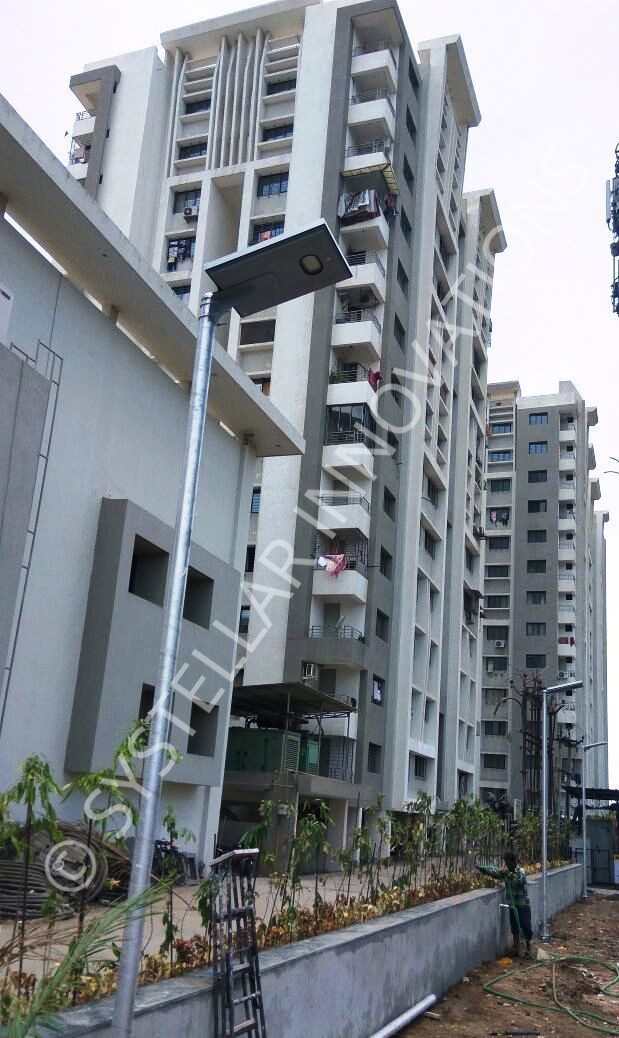

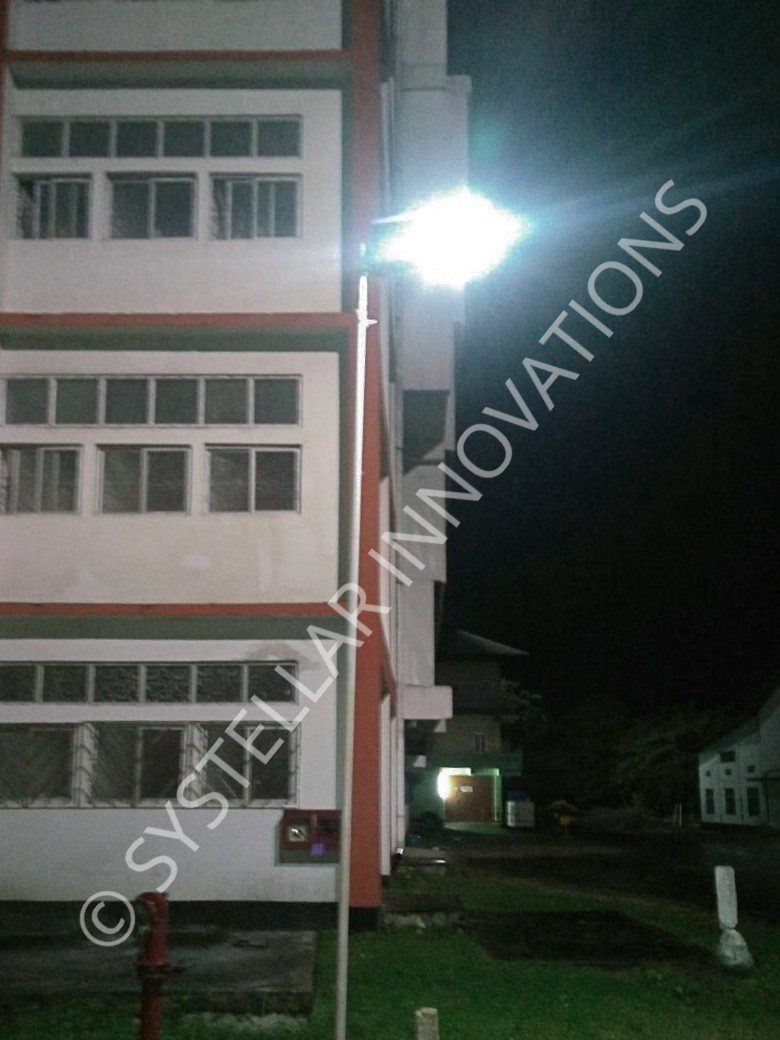

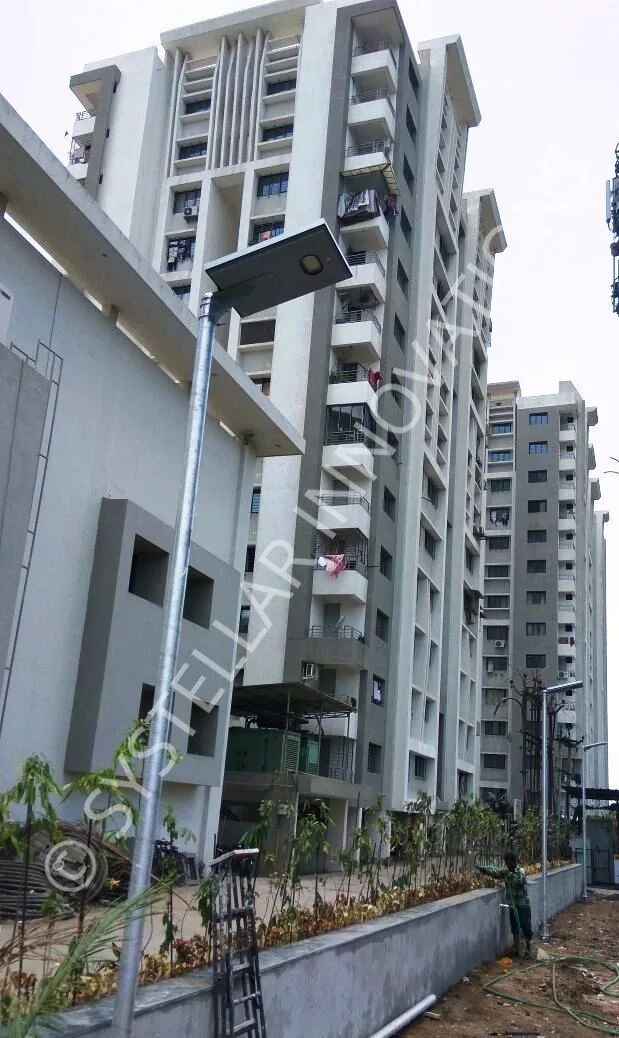

- 🏘️ Residential Colonies & Housing Societies — 12W–20W models for internal roads and pathways; no wiring disruption to existing infrastructure

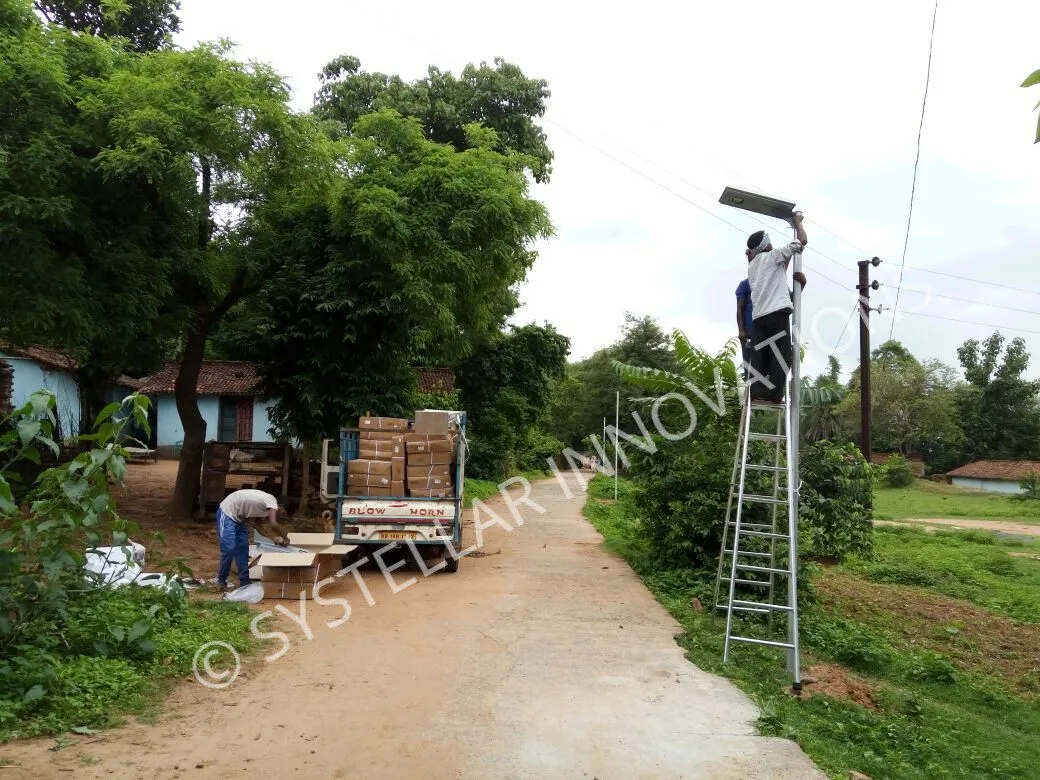

- 🌾 Villages & Rural Roads — Off-grid lighting where there is no electricity connection; panchayat and government scheme compliant
- 🅿️ Parking Lots & Open Areas — Motion sensor dimming reduces energy waste in large, low-footfall areas

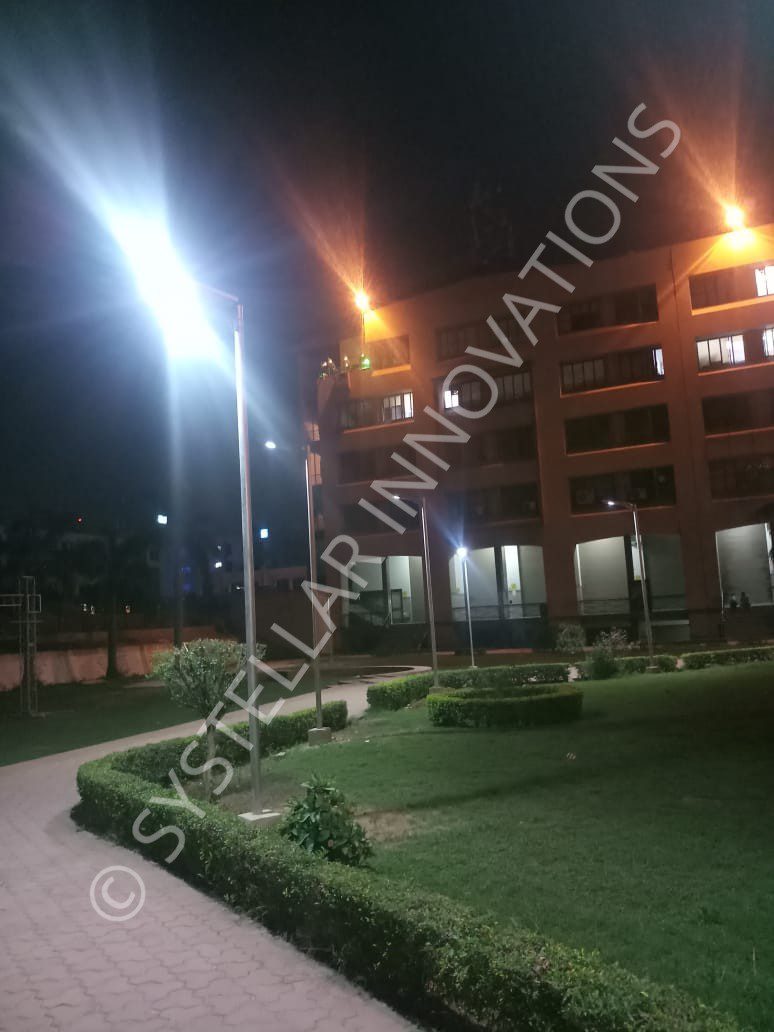

- 🏫 Schools, Colleges & Campuses — Aesthetic, low-maintenance lighting without trenching through landscaped areas
- 🏭 Industrial Boundary Walls & Perimeter Roads — Anti-theft design ideal for unmanned perimeter lighting
- 🏙️ Smart City & Municipal Projects — MNRE-approved units compliant with government scheme specifications
- 🏕️ Eco-Tourism Sites & Resorts — Wireless, no-trench installation preserves natural landscape
- 🔧 Retrofit / Replacement Projects — Replace failed traditional street lights on existing poles in hours, not days
All In One Solar Street Light Price — Model-Wise
Prices vary based on battery type, order quantity, and project location. Contact us for bulk pricing, government tender rates, and GeM quotations.
| Model | Configuration | Approx. Price |
|---|---|---|
| AIO-7 | 7W LED / 15W Panel / 6Ah LiFePO4 / PIR Sensor | ₹4,500 – ₹6,000* |
| AIO-12 | 12W LED / 25W Panel / 10Ah LiFePO4 / PIR Sensor | ₹6,000 – ₹8,000* |
| AIO-20 | 20W LED / 40W Panel / 15Ah LiFePO4 / PIR Sensor | ₹8,000 – ₹10,500* |
| AIO-30 | 30W LED / 55W Panel / 20Ah LiFePO4 / PIR Sensor | ₹10,500 – ₹14,000* |
| AIO-40 / 50 | 40W–50W LED / 70W Panel / 25Ah+ LiFePO4 / PIR Sensor | Contact for Quote |
*Prices are indicative and subject to battery chemistry, GST, and order quantity. Bulk discounts available for 50+ units.
⚠️ Beware of Under-Spec Products: Low-cost all in one solar lights in the market frequently use undersized batteries and lower-grade LED chips that fail within 12–18 months. Systellar guarantees full-rated specifications on every unit, verified with in-house testing before dispatch.
Technical Specifications
| Parameter | Details |
|---|---|
| LED Wattage Options | 7W, 12W, 15W, 20W, 25W, 30W, 40W, 50W |
| Solar Panel | Monocrystalline, built-in — MNRE / NISE / NABL certified, 25-year warranty |
| Battery Options | Li-ion or LiFePO4 — 6Ah to 30Ah+ (2-year Li-ion warranty; 5-year LiFePO4 warranty) |
| Motion Sensor | PIR — dims to 30–50% after 30 sec of no movement; brightens to 100% on detection |
| Charge Controller | MPPT / PWM (built-in) |
| LED Efficacy | 130+ lm/W; CRI > 80 |
| LED Life | 50,000+ hours |
| Protection Suite | Battery overcharge, deep discharge, reverse polarity, short circuit, reverse flow protection |
| Housing | IP65 aluminium alloy — dust-proof and waterproof |
| Mounting | Universal bracket — compatible with most standard poles; no welding or drilling required |
| Mounting Height | 3.5M to 6M (depending on wattage) |
| Operating Voltage | 12V DC (Li-ion / LiFePO4 system) |
| Temperature Range | 0°C to 60°C |
| Humidity | 0–95% non-condensing |
| Wiring Required | None — fully wireless, self-contained |
| Warranty | 2 years (electronics & Li-ion); 5 years (LiFePO4 battery) |
LED Status Indicator Guide
| Indicator | Condition |
|---|---|
| 🔴 1 blink / 2 sec | Battery low — recharge needed |
| 🔴 2 blinks / 2 sec | Solar panel surface dirty — clean the panel |
| 🔴 Solid ON | Battery voltage too high (system fault) |
| 🟢 OFF during daytime | Battery fully charged |
| 🟢 1 blink / 2 sec | Daytime — charging current <1A |
| 🟢 2 blinks / 2 sec | Daytime — charging current >1A |
All In One vs Integrated Solar Street Light — Which Should You Choose?
Both products are manufactured by Systellar and serve different project requirements. Use this table to select the right product:
| Feature | All In One | Integrated |
|---|---|---|
| Design | ✅ Single compact unit — panel, battery, LED together | LED + battery in luminaire; panel separate |
| Wiring Required | ✅ None — fully wireless | Panel-to-luminaire cable needed |
| LED Wattage Range | 7W to 50W | ✅ 12W to 100W |
| Installation Ease | ✅ Fastest — bracket & mount only | Simple, but panel angle setup needed |
| Solar Panel Angle | Fixed with unit | ✅ Adjustable independently |
| Retrofit Capability | ✅ Easy | ✅ Easy |
| Best For | Colonies, villages, campuses, parking lots | Highways, wide roads, high-lumen projects |
👉 Need help deciding? Talk to our technical team — we’ll recommend the right model for your specific project.
Why 25,000+ Projects Across India Trust Systellar
- 🏆 Award-winning manufacturer recognised by the Indian Industries Association (IIA)
- 🎓 Founded by IIT alumni — engineering-first approach to every product
- 🏭 ISO 9001:2015 certified — Meerut, Uttar Pradesh
- ✅ MNRE / NISE / NABL government lab certified solar panels — 25-year warranty
- 🏛️ Trusted by ONGC, IIT Bombay, SG Cricket, Dayal Group and many more
- 📦 Full-rated specifications guaranteed — no under-capacity batteries, no inferior LED chips
- 🔧 In-house R&D & manufacturing — customisation available for bulk and OEM orders
- 🌐 Pan-India service support — warranty claims honoured, spare parts available
Frequently Asked Questions — All In One Solar Street Light
What is the price of an all in one solar street light in India?
Systellar’s all in one solar street lights start from approximately ₹4,500 for a 7W model and go up to ₹14,000+ for a 30W configuration with LiFePO4 battery. Prices vary by wattage, battery type, and order size. Contact us for a detailed quotation for your project.
What is the difference between an all in one and an integrated solar street light?
In an all in one solar street light, the solar panel, LED, and battery are all fused into one single compact unit — no wiring is needed. In an integrated solar street light, the LED and battery are in the luminaire but the solar panel is mounted separately, allowing higher wattages (up to 100W) and optimal south-facing panel orientation. All in one models are best for colonies, villages, and campuses; integrated models are preferred for highways and wide roads needing higher lumen output.
Does the all in one solar street light work during cloudy or rainy days?
Yes. The PIR motion sensor automatically dims the light to 30–50% during idle periods, which significantly extends battery backup. A fully charged LiFePO4 battery can typically support 2–3 consecutive cloudy nights depending on the model and usage pattern. Systellar’s MPPT controllers also maximise charging even under diffused light conditions.
Is any electrical wiring required for installation?
No. The all in one solar street light is completely self-contained. Installation only requires mounting the bracket onto a pole. No underground cabling, no grid connection, no electrical contractor — making it ideal for rural areas, renovation projects, and locations where trenching is not feasible.
Are Systellar all in one solar street lights MNRE approved?
Yes. Systellar products are MNRE approved, tested by NISE and NABL-certified government laboratories, IEC certified. This makes them suitable for government tenders, panchayat schemes, and GeM procurement.
Can I get a custom wattage or battery configuration for a large order?
Yes. Systellar’s in-house R&D team can configure custom LED wattages, battery capacities, mounting brackets, and even OEM branding for bulk orders. Contact us with your project requirements and we will design the right specification for you.
What warranty is offered on the all in one solar street light?
Systellar offers a 2-year warranty on electronics and Li-ion batteries, and a 5-year warranty on LiFePO4 batteries. All warranty claims are supported by our in-house service team — we do not outsource warranty support.
