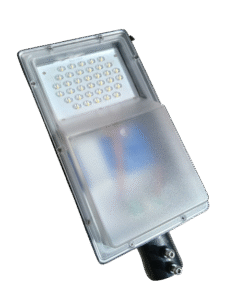

AC street light with emergency backup (BBCL)

Brighten Your Nights, Even During Power Outages

Category:

Description

Introducing the AC Street Light with Emergency Backup, a revolutionary lighting solution designed for India. Whether in urban streets or remote rural pathways, this energy-efficient light ensures uninterrupted illumination during power cuts.

Why Choose This Light?

  • Reliable Backup Power: Equipped with a powerful LiFePO4 battery, it provides 4-5 hours of full-brightness lighting during outages.
  • Automatic Dusk-to-Dawn Functionality: Intelligent sensors activate the light at dusk and turn it off at dawn, saving energy and reducing manual effort.
  • Dual Power Modes: Automatically switches between mains electricity and battery backup while recharging itself when power returns.
  • Durable and Versatile: Operates efficiently within a voltage range of 110V to 300V, making it suitable for diverse environments across India.

Where Can It Be Used?

  • Pathways in Residential Areas: Ideal for walkways and apartment complexes.
  • Industrial Zones: Reliable lighting for warehouses, factories, and godowns.
  • Hospitality Spaces: Enhances pathways in hotels, resorts, and banquet halls.
  • Critical Areas: Provides dependable lighting in zones that require uninterrupted illumination.

Benefits of the AC Street Light with Emergency Backup

  • Integrated Design: Combines LED light, LiFePO4 battery, dusk-to-dawn sensor, and energy-efficient charging circuit in a single unit.
  • Uninterrupted Lighting: Keeps your surroundings illuminated even during blackouts.
  • Energy Efficiency: Conserves power with smart automatic brightness adjustments.
  • Rugged Build: Made with an aluminum pressure die-cast body and IP65 rating for superior weather resistance.
  • Advanced Protection: Built-in safeguards against battery overcharge and deep discharge.
  • Wide Compatibility: Functions seamlessly across a wide voltage range.

Available Models

  • 25W LED: Compact and efficient for smaller spaces like walkways
  • 50W LED: Powerful illumination for larger spaces like parks and open areas

This cutting-edge lighting solution is perfect for anyone looking to combine reliability, efficiency, and durability. From urban streets to rural landscapes, the AC Street Light with Emergency Backup is designed to brighten every corner of India.

Contact us today to upgrade your lighting experience!

Technical Specifications

LED Light25W / 50W LED Models
AC Mains input voltage range110V – 300V AC
Battery capacity12.8V 6 Ah / 12Ah LiFePO4
Battery Charger rating14.6V 5A CVCC
LUMEN Output2600 / 5500 Lumen
LED Dispersion angle / CRI120° / 80 CRI
LED ColorCool white (6500K) or Warm white (4500K)
LED Driver efficiency>90% (Battery to Load)
Battery operating Voltage Range12V to 14.6V
Light mounting height4m – 6m above ground level
Space between light poles10 m – 15m
ProtectionsHigh/Low Mains & battery voltage protection, short-circuit protection, Surge protection 4kV
Temperature / Humidity Range0 to 60 °C / 0 to 95% (non-condensing)
Product Warranty1 Year (Battery warranty 1 year)
Light backup time on battery3hour. Progressive dimming after 3 hr depending on battery voltage
Net Weight / IP Rating5 kg / IP 65
Product Dimensions (L x W x H)440mm x 200mm x 120mm
